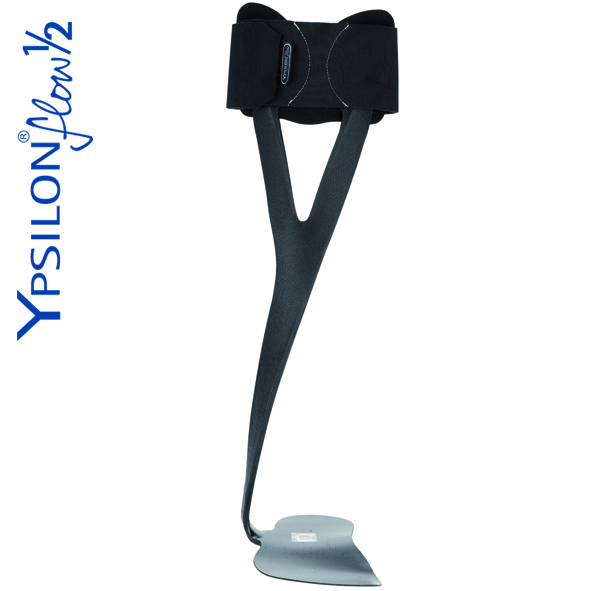

Ypsilon® Flow ½

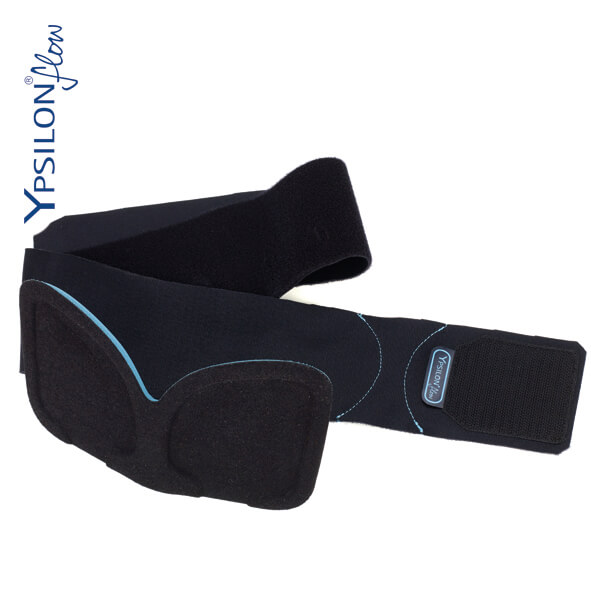

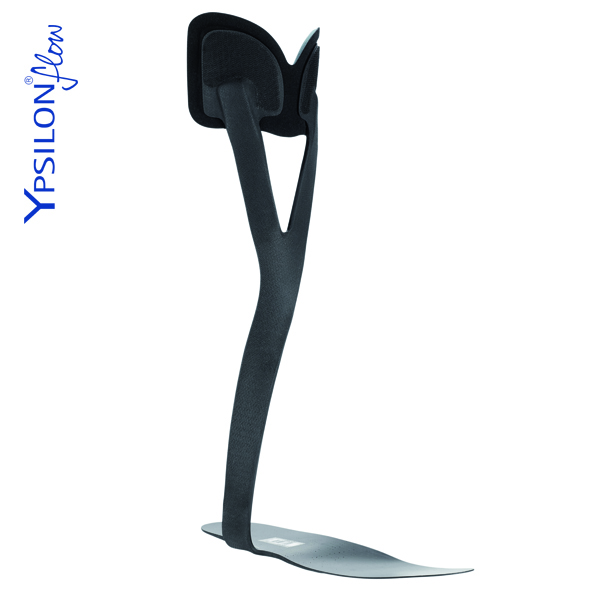

Ypsilon® Flow ½ is the AFO of choice for active patients who require less stability and more flexibility. Ypsilon® Flow ½ has a lower heel height (approx. 7 mm) which accommodates gentler contours of shoe insoles and offers more clearance for the forefoot in the shoe toe box. Designed to allow optimum range of motion and dynamic toe-off assist, providing the opportunity for functional or potentially functional muscles, tendons, and ligaments to strengthen and prevent or reduce atrophy. The footplate is engineered to allow the orthosis to adapt to and move with the lower leg with less resistance to ground reaction forces, while the proximal ends of the “Y” provide fixation points, eliminating pressure on the tibia crest. Smooth and thin, the interface pad and strap fit close to the leg, ensuring the brace glides smoothly and is barely noticeable under jeans or trousers. Ypsilon® Flow ½ has a heel height that is 7 mm in all sizes.
Recommended Range Of Application
Ypsilon® Flow is designed to manage footdrop in conditions such as Stroke, Multiple Sclerosis, Post Polio Syndrome, Muscular Dystrophy, Spinal Cord Injuries, Traumatic Brain Injuries, Guillian-Barre Syndrome, Charcot-Marie-Tooth, Myelomeningocele, Neuropathy or Cerebral Palsy.
Contraindications
Ypsilon® Flow should not be used when patients present with foot and/or leg ulcers, moderate to severe edema, moderate to severe foot deformities, severe proximal defcits (e.g. quadriceps spasticity, genu valgum or varum, genu recurvatum), severe spasticity.
Other
More about ftting and product selection can be found in the Allard AFO Professional Instruction.
Model
| Item No. | Model | Size | L/R | Shoe Size | Footplate Length | Height |
|---|---|---|---|---|---|---|
| 288801011 | Ypsilon® Flow½ | Small | Left | 35-38 | 23 cm | 35,5 cm |
| 288801012 | Ypsilon® Flow½ | Medium | Left | 38-42 | 24,5 cm | 36,5 cm |
| 288801013 | Ypsilon® Flow½ | Large | Left | 42-45 | 27 cm | 37,5 cm |
| 288801014 | Ypsilon® Flow½ | X-Large | Left | >45 | 28,5 cm | 38,5 cm |
| 288802011 | Ypsilon® Flow½ | Small | Right | 35-38 | 23 cm | 35,5 cm |
| 288802012 | Ypsilon® Flow½ | Medium | Right | 38-42 | 24,5 cm | 36,5 cm |
| 288802013 | Ypsilon® Flow½ | Large | Right | 38-42 | 27 cm | 37,5 cm |
| 288802014 | Ypsilon® Flow½ | X-Large | Right | >45 | 28,5 cm | 38,5 cm |
| 288840012 | Tibia pads | S/M/L | Bilateral | - | - | - |
| 288840014 | Tibia pads | X-Large | Bilateral | - | - | - |
| 288850000 | Strap | One size | Bilateral | - | - | - |
| 998090013 | Microfix Ypsilon Flow | - | - | - | - | - |
-
User Instruction Allard AFO (883.54 KB)
-
Professional Instructions Allard AFO (2.16 MB)
-
Brochure Ypsilon Flow (481.61 KB)
-
AllardAFO - a sustainable choice (2.04 MB)
-
Brochure AllardAFO (1.13 MB)
-
Medical Reference Paper (1.89 MB)
-
Warranty Information AllardAFO (47.34 KB)
Author: Danielsson A, Stibrant Sunnerhagen K.
Source: J Rehabil Med 2004; 36: 165–168
Author: ANI MNATSAKANIAN BS et al.
Source: Muscle Nerve 000:000–000, 2016
Author: Altschuck N. et al
Author: Roberts Joffe, Fredrik Forsberg, Henrik Lycksam, Anders Sjögren
Source: ICTMS 2017 - 3rd International Conference on Tomography of Materials and Structures, 26-30 June 2017, Lund, Sweden
Author: Shuman BR, Espesito ER
Source: Journal of Biomechanical Engineering. JANUARY 2022, Vol. 144 / 011004-1
Author: Shuman et al.
Source: Journal of NeuroEngineering and Rehabilitation (2023) 20:11
Author: Megan M. Grunst , Robert C. Wiederien1 and Jason M.
Source: A systematic review Prosthetics and Orthotics International 2023
Author: Burke K1,2, Cornell K1,3, Swartz Ellrodt A1,2, Grant N1,2, Paganoni S2,4,5 and Sadjadi R1,2*
Source: CMT study.2021
Preliminary research suggests the use of a kinetic return ankle foot orthosis is associated with small but significant shortterm increases in calf circumference, which in turn suggests this type of device might reduce or protect against the risk of disuse muscle atrophy.
Author: Robert H. Meier, CO, BOCO; David C. Ruthsatz, CO, CPA; and Daniel, Cipriani, PT, PhD.
Source: Lermagazine 2014
