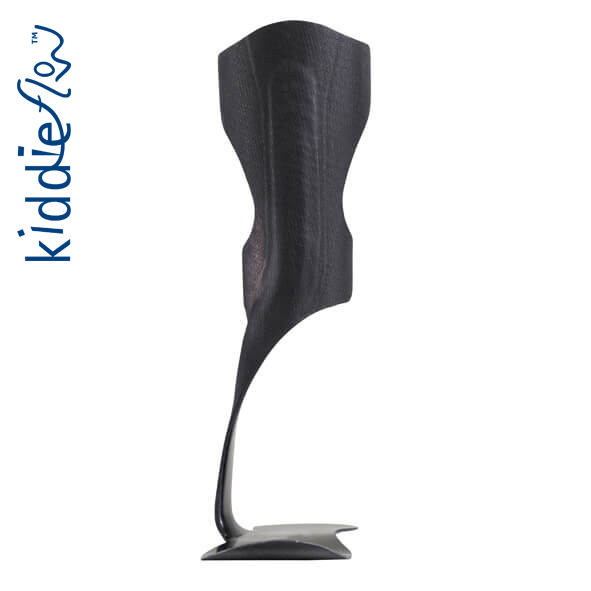

KiddieFLOW™
Unlike KiddieGAIT®, KiddieFLOW ™ is more flexible in the heel and toe area of the footplate and allows a greater range of motion. KiddieFLOW ™ is based on the same principles as our adult FLOW models and retains the same geometry as KiddieGAIT® and KiddieROCKER®. The orthosis supports the dorsiflexion of the foot in the swing phase, provides better control of foot positioning in the late swing phase, which in turn improves stability in the stance phase. At the same time, the softer foot blade provides easier roll off at the end of the stance phase.
For a combination of increased A / P and M / L control, can KiddieFLOW ™, in addition to our other children’s models, also be combined with individual insoles or SMO.
Recommended Range Of Application
Footdrop. KiddieFLOW™ is designed to support footdrop, gait deviations secondary to proprioceptive deficit, unstable gait or low-tone gait, toe-walking with no midfoot collapse, Spina Bifida, Cerebral Palsy and Muscular Dystrophy.
Contraindications
KiddieFLOW™ should not be used when patients present with: Lacking ROM towards dorsiflexion (need at least 5o dorsiflexion past neutral), Very rigid foot structure, Quadriceps spasticity, Fixed postural Genu Valgum or Genu Varum, Fixed postural Pes Valgus or Pes Varus. KiddieFLOW™ should not be selected for children present with crouch gait.
Model
| Item No. | Model | Size | L/R | Footplate Length | Height |
|---|---|---|---|---|---|
| 288911011 | KiddieFLOW™ | Small | Left | 16 cm | 22 cm |
| 288911012 | KiddieFLOW™ | Medium | Left | 18 cm | 25,7 cm |
| 288911013 | KiddieFLOW™ | Large | Left | 20 cm | 29,5 cm |
| 288911014 | KiddieFLOW™ | X-Large | Left | 21 cm | 31,5 cm |
| 288912011 | KiddieFLOW™ | Small | Right | 16 cm | 22 cm |
| 288912012 | KiddieFLOW™ | Medium | Right | 18 cm | 25,7 cm |
| 288912013 | KiddieFLOW™ | Large | Right | 20 cm | 29,5 cm |
| 288912014 | KiddieFLOW™ | X-Large | Right | 21 cm | 31,5 cm |
| 288921011 | KiddieFLOW™ w/D-ring | Small | Left | 16 cm | 22 cm |
| 288921012 | KiddieFLOW™ w/D-ring | Medium | Left | 18 cm | 25,7 cm |
| 288921013 | KiddieFLOW™ w/D-ring | Large | Left | 20 cm | 29,5 cm |
| 288921014 | KiddieFLOW™ w/D-ring | X-Large | Left | 21 cm | 31,5 cm |
| 288922011 | KiddieFLOW™ w/D-ring | Small | Right | 16 cm | 22 cm |
| 288922012 | KiddieFLOW™ w/D-ring | Medium | Right | 18 cm | 25,7 cm |
| 288922013 | KiddieFLOW™ w/D-ring | Large | Right | 20 cm | 29,5 cm |
| 288922014 | KiddieFLOW™ w/D-ring | X-Large | Right | 21 cm | 31,5 cm |
Author: Danielsson A, Stibrant Sunnerhagen K.
Source: J Rehabil Med 2004; 36: 165–168
Author: ANI MNATSAKANIAN BS et al.
Source: Muscle Nerve 000:000–000, 2016
Author: Altschuck N. et al
Author: Roberts Joffe, Fredrik Forsberg, Henrik Lycksam, Anders Sjögren
Source: ICTMS 2017 - 3rd International Conference on Tomography of Materials and Structures, 26-30 June 2017, Lund, Sweden
Author: Shuman BR, Espesito ER
Source: Journal of Biomechanical Engineering. JANUARY 2022, Vol. 144 / 011004-1
Author: Shuman et al.
Source: Journal of NeuroEngineering and Rehabilitation (2023) 20:11
Author: Megan M. Grunst, Robert C. Wiederien and Jason M.
Source: A systematic review Prosthetics and Orthotics International 2023
Author: Burke K1,2, Cornell K1,3, Swartz Ellrodt A1,2, Grant N1,2, Paganoni S2,4,5 and Sadjadi R1,2*
Source: CMT study.2021
Preliminary research suggests the use of a kinetic return ankle foot orthosis is associated with small but significant shortterm increases in calf circumference, which in turn suggests this type of device might reduce or protect against the risk of disuse muscle atrophy.
Author: Robert H. Meier, CO, BOCO; David C. Ruthsatz, CO, CPA; and Daniel, Cipriani, PT, PhD.
Source: Lermagazine 2014
