MultiMotion Accessories / Spare parts

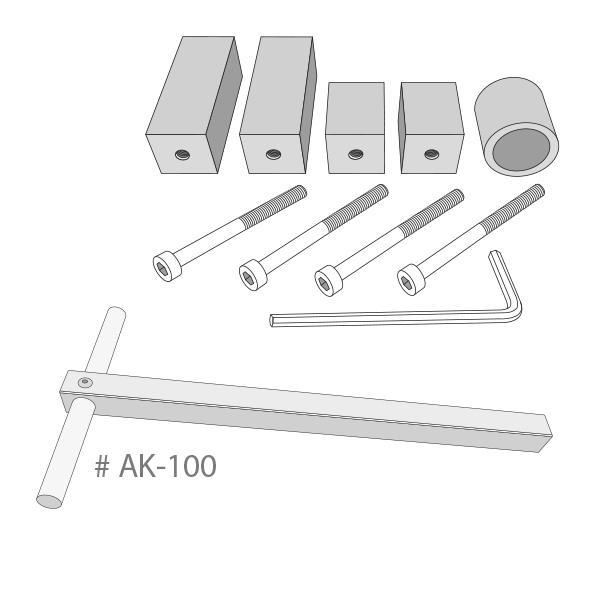

For best results in manufacturing the MultiMotion joint, it is recommended to use the Alignment Device to ensure that the joints are properly aligned to the cast. This alignment tool is reusable.
Other
Dummies for manufacturing are listed under the joint section.
Model
| Item No. | Model | Size |
|---|---|---|
| 691450000 | MultiMotion Gear Wheel Assembly | Large |
| 691660000 | MultiMotion Alignment Unit | Set |
| 691580000 | MultiMotion Stops | Medium |
| 691570000 | MultiMotion Gear Wheel Assembly | Medium |
| 691560000 | MultiMotion Force Output Indicator Disc | Medium |
| 691550000 | MultiMotion Housing | Medium |
| 691540000 | MultiMotion Spacer Ring | Medium |
| 691530000 | MultiMotion Central Cap Screw | Medium |
| 691460000 | MultiMotion Stops | Large |
| 691670000 | Basic alignment T-bar | Single (1) |
| 691440000 | MultiMotion Force Output Indicator | Large |
| 691430000 | MultiMotion Housing | Large |
| 691420000 | MultiMotion Spacer Ring | Large |
| 691410000 | MultiMotion Central Cap Screw | Large |
| 691700000 | MultiMotion Joint Bar Screws | Pack of 4 |
| 691690000 | MultiMotion Bearing Ring | Large |
| 691680000 | MultiMotion Bearing Ring | Medium |
-
