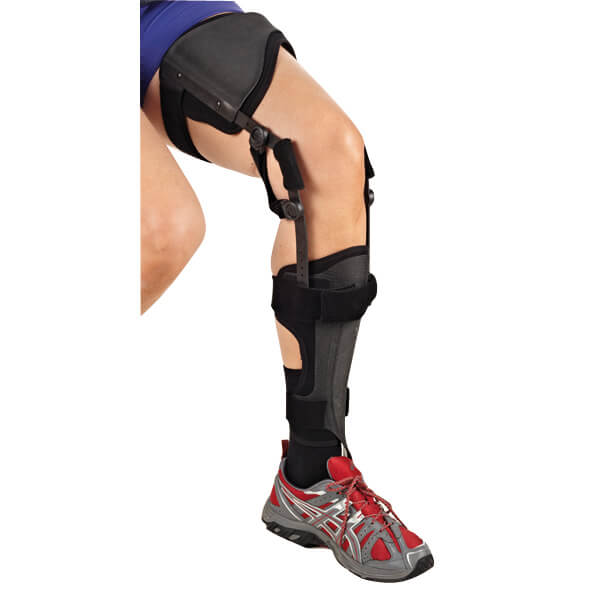

ToeOFF® Combo
Dynamic low profile, lightweight, functional orthotic solution for the management of genu recurvatum or chronic knee instability, accompanied by foot-drop. Low profile and lightweight – a KAFO your patients will wear! Uprights easily shaped and adjusted to optimum height for patient. Modular components allow you to accommodate variances in thigh and calf circumference. Easy to don and doff. Easily removed when wearer is relaxing (watching TV, etc.).
Recommended Range Of Application
Knee instability, knee hyperextension in combination with a foot drop from stroke, post-polio, MS, etc.
Contraindications
Weight Limit - 150 kg, Height Limit - 2 m.Use of COMBO with any product other than ToeOFF® or BlueROCKER® is prohibited.
Measurement
Knee measurement 1: M-L mid-patella
Knee measurement 2: Circumference 20 cm above the mid-patella
Knee measurement 3: M-L 20 cm above the mid-patella
Other
Please allow at least 1 1/2 hours fitting time. Workshop tools required. ALLARD UK IS NOW ASSEMBLING COMBO® - Saving you workshop time. Download your order form!
To order a complete COMBO you need five articles in addition to ToeOFF/BlueROCKER.
1. Joints with uprights (pair)
2. Tibia connector
3. Strap set and buckles
4. Thigh cuff
5. Thigh cuff SoftKIT (2 pc.)
Model
| Item No. | Model | Size | L/R | Knee Measurement 1 | Knee Measurement 2 | Knee Measurement 3 |
|---|---|---|---|---|---|---|
| 287800000 | Joints with uprights | One size | Bilateral | - | - | - |
| 287811011 | Thigh cuff | Small | Left | - | 30-40 cm | 11-15 cm |
| 287811012 | Thigh cuff | Medium | Left | - | 38-50 cm | 13-17 cm |
| 287811013 | Thigh cuff | Large | Left | - | 48-60 cm | 15-19 cm |
| 287811014 | Thigh cuff | X-Large | Left | - | 58-70 cm | 17-21 cm |
| 287812011 | Thigh cuff | Small | Right | - | 30-40 cm | 11-15 cm |
| 287812012 | Thigh cuff | Medium | Right | - | 38-50 cm | 13-17 cm |
| 287812013 | Thigh cuff | Large | Right | - | 48-60 cm | 15-19 cm |
| 287812014 | Thigh cuff | X-Large | Right | - | 58-70 cm | 17-21 cm |
| 287820011 | Strap set and buckles, poplitea interface | Small | Bilateral | 7-10,5 cm | - | - |
| 287820012 | Strap set and buckles, poplitea interface | Medium | Bilateral | 9,5-13 cm | - | - |
| 287820013 | Strap set and buckles, poplitea interface | Large | Bilateral | 12,5-16 cm | - | - |
| 287960000 | Calf Strap | One Size | - | - | - | - |
| 287830011 | Thigh cuff softKIT (2 pc.) | Small | Bilateral | - | - | - |
| 287830012 | Thigh cuff softKIT (2 pc.) | Medium | Bilateral | - | - | - |
| 287830013 | Thigh cuff softKIT (2 pc.) | Large | Bilateral | - | - | - |
| 287830014 | Thigh cuff softKIT (2 pc.) | X-Large | Bilateral | - | - | - |
| 287840011 | Tibia connector | Small | Bilateral | - | - | - |
| 287840012 | Tibia connector | Medium | Bilateral | - | - | - |
| 287840013 | Tibia connector | L-XL | Bilateral | - | - | - |
Author: Danielsson A, Stibrant Sunnerhagen K.
Source: J Rehabil Med 2004; 36: 165–168
Author: ANI MNATSAKANIAN BS et al.
Source: Muscle Nerve 000:000–000, 2016
Author: Altschuck N. et al
Author: Roberts Joffe, Fredrik Forsberg, Henrik Lycksam, Anders Sjögren
Source: ICTMS 2017 - 3rd International Conference on Tomography of Materials and Structures, 26-30 June 2017, Lund, Sweden
Author: Shuman BR, Espesito ER
Source: Journal of Biomechanical Engineering. JANUARY 2022, Vol. 144 / 011004-1
Author: Shuman et al.
Source: Journal of NeuroEngineering and Rehabilitation (2023) 20:11
Author: Megan M. Grunst , Robert C. Wiederien1 and Jason M.
Source: A systematic review Prosthetics and Orthotics International 2023
Author: Burke K1,2, Cornell K1,3, Swartz Ellrodt A1,2, Grant N1,2, Paganoni S2,4,5 and Sadjadi R1,2*
Source: CMT study.2021
Preliminary research suggests the use of a kinetic return ankle foot orthosis is associated with small but significant shortterm increases in calf circumference, which in turn suggests this type of device might reduce or protect against the risk of disuse muscle atrophy.
Author: Robert H. Meier, CO, BOCO; David C. Ruthsatz, CO, CPA; and Daniel, Cipriani, PT, PhD.
Source: Lermagazine 2014
