Boston Overlap Brace (BOB) Stock Size 30°

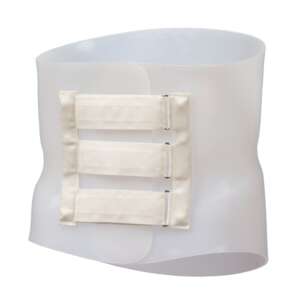

The Original Boston Overlap Brace (BOB) is an anterior opening LSO thermoplastic brace specifically designed for patients suffering from chronic or temporary low back pain.
Recommended Range Of Application
Mechanical back pain, Discongenic low back pain, Compression factures, Sports injuries, Spondylolsis, Spondylolisthesis, Osteoporosis, Spinal Arthrosis, Spinal Stenosis, Pre and Post-operative care.
Measurement
Available in 20 stock sizes with either 0°, 15° or 30° Lordosis. Measurements in centimetres. Measurement 1: Hip; Measurement 2: Waist; Measurement 3: Chest
Other
Lightweight, yet sturdy and can easily be trimmed to size. Supplied with a front steel closure. A pair of posterior reinforcement steel stays (Para) can also be applied as necessary. BOBs are supplied unlined or lined. Replacement liners can be ordered for each stock size.Can be supplied finished to first fitting stage. Please see the section called Boston Brace Accessories and Materials for liners and closures.
This product can also be made to scan (our new Boston Scan-to-Fit offering). Follow the protocol for scanning and the instruction video for the correct procedure. The information can be found under Support documents and Videos below.
Model
| Item No. | Model | Size | Measurement 1 | Measurement 3 | Lordosis degree | Measurement 2 |
|---|---|---|---|---|---|---|
| 301 | Stock Size Module, Unlined | 1 | 71 | 66 | 30° | 51 |
| 301D | Stock Size Module, Unlined | 1D | 71 | 58.5 | 30° | 45 |
| 302 | Stock Size Module, Unlined | 2 | 76 | 71 | 30° | 61 |
| 302D | Stock Size Module, Unlined | 2D | 76 | 63.5 | 30° | 51 |
| 303 | Stock Size Module, Unlined | 3 | 81 | 76 | 30° | 71 |
| 303D | Stock Size Module, Unlined | 3D | 81 | 74 | 30° | 66 |
| 304 | Stock Size Module, Unlined | 4 | 86.5 | 84 | 30° | 76 |
| 304D | Stock Size Module, Unlined | 4D | 86.5 | 69 | 30° | 58.5 |
| 305 | Stock Size Module, Unlined | 5 | 91.5 | 89 | 30° | 81 |
| 305D | Stock Size Module, Unlined | 5D | 91.5 | 76 | 30° | 66 |
| 306 | Stock Size Module, Unlined | 6 | 96.5 | 94 | 30° | 86.5 |
| 306D | Stock Size Module, Unlined | 6D | 96.5 | 84 | 30° | 74 |
| 307 | Stock Size Module, Unlined | 7 | 101.5 | 99 | 30° | 91.5 |
| 307D | Stock Size Module, Unlined | 7D | 101.5 | 91.5 | 30° | 81 |
| 308 | Stock Size Module, Unlined | 8 | 109 | 109 | 30° | 96.5 |
| 308D | Stock Size Module, Unlined | 8D | 109 | 91.5 | 30° | 84 |
| 309 | Stock Size Module, Unlined | 9 | 114 | 114 | 30° | 100 |
| 309D | Stock Size Module, Unlined | 9D | 114 | 94 | 30° | 87 |
| 310 | Stock Size Module, Unlined | 10 | 117 | 117 | 30° | 104 |
| 310D | Stock Size Module, Unlined | 10D | 117 | 101 | 30° | 96 |
| 301L | Stock Size Module, Lined | 1 | 71 | 66 | 30° | 51 |
| 301DL | Stock Size Module, Lined | 1D | 71 | 58.5 | 30° | 45 |
| 302L | Stock Size Module, Lined | 2 | 76 | 58.5 | 30° | 45 |
| 302DL | Stock Size Module, Lined | 2D | 76 | 63.5 | 30° | 51 |
| 303L | Stock Size Module, Lined | 3 | 81 | 76 | 30° | 71 |
| 303DL | Stock Size Module, Lined | 3D | 81 | 74 | 30° | 66 |
| 304L | Stock Size Module, Lined | 4 | 86.5 | 84 | 30° | 76 |
| 304DL | Stock Size Module, Lined | 4D | 86.5 | 69 | 30° | 58.5 |
| 305L | Stock Size Module, Lined | 5 | 91.5 | 89 | 30° | 81 |
| 305DL | Stock Size Module, Lined | 5D | 91.5 | 76 | 30° | 66 |
| 306L | Stock Size Module, Lined | 6 | 96.5 | 94 | 30° | 86.5 |
| 306DL | Stock Size Module, Lined | 6D | 96.5 | 84 | 30° | 74 |
| 307L | Stock Size Module, Lined | 7 | 101.5 | 99 | 30° | 91.5 |
| 307DL | Stock Size Module, Lined | 7D | 101.5 | 91.5 | 30° | 81 |
| 308L | Stock Size Module, Lined | 8 | 109 | 109 | 30° | 96.5 |
| 308DL | Stock Size Module, Lined | 8D | 109 | 91.5 | 30° | 84 |
| 309L | Stock Size Module, Lined | 9 | 114 | 114 | 30° | 100 |
| 309DL | Stock Size Module, Lined | 9D | 114 | 94 | 30° | 87 |
| 3010L | Stock Size Module, Lined | 10 | 117 | 117 | 30° | 104 |
| 3010DL | Stock Size Module, Lined | 10D | 117 | 101 | 30° | 96 |
