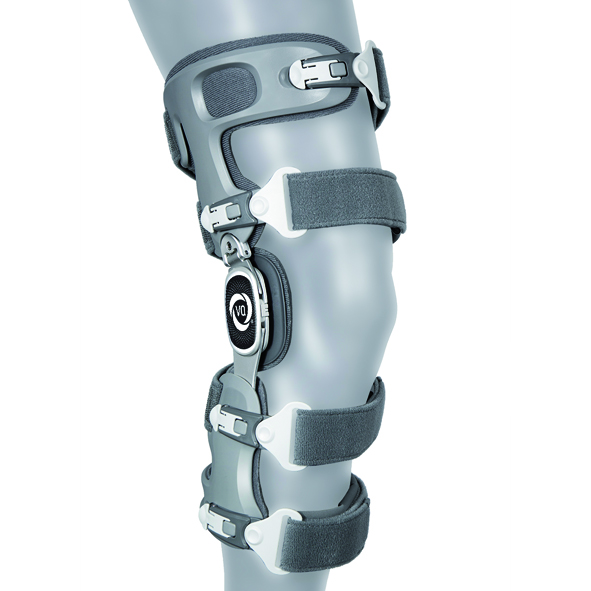

OACTIVE®2 Set-Fit Buckle
OActive® 2 Osteoarthritis Knee Brace is a lightweight, and low-profile upright
osteoarthritis knee brace with unique varus / valgus angle adjustment to optimize
pain relief. Laterally applied frame and hinge corrects for either medial or lateral
compartment and avoids contralateral limb contact during gait. The unique Q-joint
is adjusted clockwise or counterclockwise to achieve the desired relief. Start with
the orthosis in the neutral position, with the knee bent at 90º, and turn 1/8 turn
at a time to adjust the relief. OActive® 2 can also be set to limit the range of
motion for extension and flexion independently. The orthosis can also be set for
free movement. Comes with 5º stop installed.
Available in Set-Fit or Push Button Buckle System in either:
• Standard hinge for patients weighing under 136Kgs
• Heavy Duty hinge for patients weighing over 136Kgs
Features & Benefits
• Lightweight, low-profile, single upright OA brace
• Unique Set-Fit Buckle System eliminates the hassle of Velcro®
adjustments each time the brace is applied and removed.
• Single hand Push Button Buckle for patients with limited hand function
• Maximized 3 points of leverage for medial compartment
• Laterally applied frame corrects for either medial or lateral compartment
• Lateral application avoids opposite limb during gait
• Supplied with either Suspension Wrap or Tibia Cuff
Recommended Range Of Application
Mild to severe unicompartmental osteoarthritis.
Other
Standard hinge for patients weighing under 136Kgs
Heavy Duty hinge for patients weighing over 136Kgs
Model
| Item No. | Model | Size | L/R |
|---|---|---|---|
| 550151000 | Standard Hinge Set-Fit Buckle with Suspension Wrap | <136Kg | Left |
| 550152000 | Standard Hinge Set-Fit Buckle with Suspension Wrap | <136Kg | Right |
| 550161000 | Heavy Duty Hinge Set-Fit Buckle with Suspenion Wrap | >136Kg | Left |
| 550162000 | Heavy Duty Hinge Set-Fit Buckle with Suspenion Wrap | >136Kg | Right |
| 550301000 | Standard Hinge Set-fit buckle with Tibia Cuff | <136Kg | Left |
| 550302000 | Standard Hinge Set-fit buckle with Tibia Cuff | <136Kg | Right |
